- EtherCAT at up to 1 kHz EtherCAT with CoE and PDO runs at up to 1 kHz, twice the 500 Hz of the RS-485 and CAN FD ports the Pro also carries.
- 12–64 V supply The wide input runs from a 24 V or 48 V rail; at 24 V the hand draws 115 mA at rest and 4.65 A at peak.
- A connector for each bus RS-485, CAN FD and EtherCAT each have their own connector under the wrist, beside an XT30 power input.
- 383 g, 20 kg payload The left hand weighs 383 g, grips with at least 50 N, pinches with at least 15 N and carries at least 20 kg.
- 11 degrees of freedom Six coreless motors drive the thumb's flexion and abduction and each finger's flexion, five joints follow passively, and control repeats to 0.1°.
- Python, C/C++ and ROS BrainCo's SDKs run on Linux, Windows and ROS, with URDF and MuJoCo models and over-the-air firmware updates.
Description
The BrainCo Revo 2 Pro (XEL) is the left-hand Pro version of BrainCo's Revo 2 bionic dexterous robotic hand, built for robots that run their joints on EtherCAT. It keeps the Revo 2 mechanism, 383 g with 11 degrees of freedom from six coreless motors, and adds an EtherCAT port and a 12–64 V input to the RS-485 and CAN FD of the Basic.
EtherCAT matters when the hand has to move in step with the arm. With CoE and PDO the Pro exchanges commands and state at up to 1 kHz, where RS-485 and CAN FD top out at 500 Hz, so a humanoid or arm controller can treat the fingers as more axes in the same cycle. The wide supply runs straight from a 24 V or 48 V rail, and at 24 V the hand idles at 115 mA and peaks at 4.65 A. Position, velocity, current, cascaded and compliance control and five command modes (position with a time or speed limit, speed, current and PWM) come with BrainCo's Python and C/C++ SDKs on Linux, Windows and ROS.

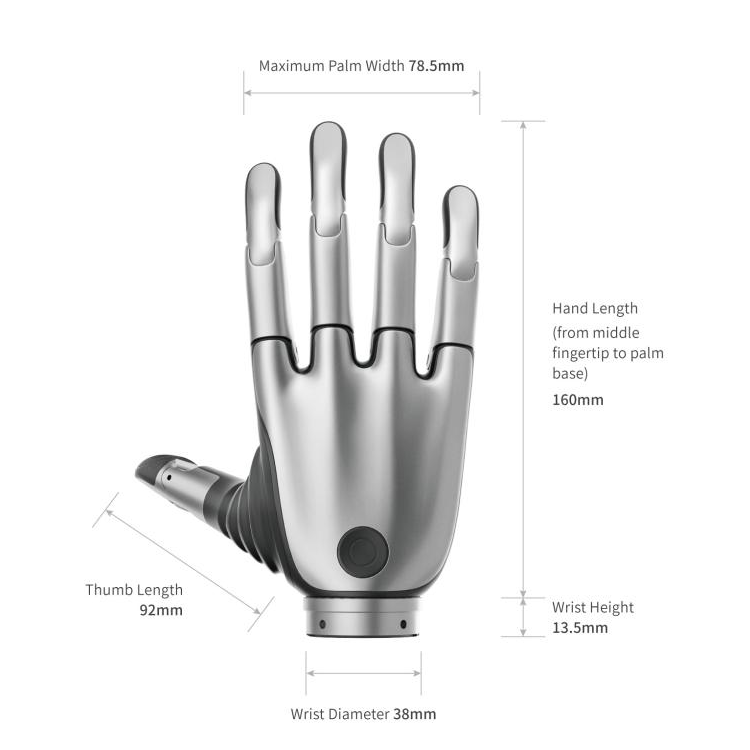

The hand measures 160 mm from palm base to middle fingertip and 78.5 mm across the palm, grips with at least 50 N, pinches with 15 N, carries at least 20 kg and repeats to 0.1°. The Revo 2 Basic left hand (XRL) is the same hand on RS-485 or CAN FD only, at 12–28 V, and the Revo 2 Touch left hand (XTL) is the Pro with capacitive tactile sensors in every fingertip and tactile adaptive control.
This is the left hand, device ID 126 by default; the Revo 2 Pro right hand (XER) uses 127, and both arrive with RS-485/CAN FD, EtherCAT and power cables. The wrist mounts with four M3 screws into 3.5 mm threaded holes, so screws should enter no more than 3 mm; fitment to your arm is confirmed with the quotation. See our other dexterous robotic hands for different makers and designs.
Key Capabilities
- EtherCAT at up to 1 kHz: EtherCAT with CoE and PDO runs at up to 1 kHz, twice the 500 Hz of the RS-485 and CAN FD ports the Pro also carries.
- 12–64 V supply: The wide input runs from a 24 V or 48 V rail; at 24 V the hand draws 115 mA at rest and 4.65 A at peak.
- A connector for each bus: RS-485, CAN FD and EtherCAT each have their own connector under the wrist, beside an XT30 power input.
- 383 g, 20 kg payload: The left hand weighs 383 g, grips with at least 50 N, pinches with at least 15 N and carries at least 20 kg.
- 11 degrees of freedom: Six coreless motors drive the thumb's flexion and abduction and each finger's flexion, five joints follow passively, and control repeats to 0.1°.
- Python, C/C++ and ROS: BrainCo's SDKs run on Linux, Windows and ROS, with URDF and MuJoCo models and over-the-air firmware updates.
Buying through Robotix Market
This unit is sourced new through established distribution channels and ships worldwide with the manufacturer warranty. Technical support is coordinated with the manufacturer's own service network. Deployment scope, configuration, and commissioning responsibilities are agreed as part of the quotation — on-site installation is not included in the product price.
Features
Specs
| Brand | BrainCo |
|---|---|
| Model | Revo 2 Pro |
| Version code | XEL (left hand); the right hand is XER |
| Hand side | Left |
| Fingers | 5 |
| Degrees of freedom | 11 (6 active, 5 passive) |
| Motors | 6 coreless motors, magnetic encoders, one integrated controller |
| Active joints | Thumb flexion, thumb abduction/adduction, and flexion of the index, middle, ring and little fingers |
| Range of motion | Thumb flexion 0–59°, thumb abduction/adduction 0–90°, each finger 0–81° |
| Weight | 383 g (without wrist) |
| Hand length (palm base to middle fingertip) | 160 mm |
| Maximum palm width | 78.5 mm |
| Thumb length | 92 mm |
| Wrist | 38 mm diameter, 13.5 mm high |
| Maximum opening (thumb to index finger) | 100 mm |
| Five-finger grip force | ≥ 50 N |
| Pinch force | ≥ 15 N |
| Maximum payload | ≥ 20 kg |
| Repeat control precision | 0.1° |
| Flexion/extension time | ≤ 0.65 s |
| Operating noise | ≤ 50 dB at 50 cm |
| Tactile sensing | None (fitted on the Revo 2 Touch) |
| Communication interfaces | RS-485 (Modbus-RTU), CAN FD, EtherCAT (CoE and PDO) |
| Communication frequency | Up to 500 Hz over RS-485 or CAN FD, up to 1 kHz over EtherCAT |
| Supply voltage | 12–64 V |
| Current at 24 V | 115 mA static, 390 mA average with no load, 4.65 A maximum |
| Power connector | XT30 |
| Control modes | Position, velocity and current control; cascaded and compliance control |
| Wrist mounting | 4 × M3 screws into 3.5 mm threaded holes (screws no deeper than 3 mm) |
| Default device ID | 126 (the right hand uses 127), adjustable 1–254 |
| Protection | Current, stall, over-temperature and collision protection |
| SDK | Python and C/C++ for Linux, Windows and ROS |
| Simulation models | URDF (ROS 1 and ROS 2) and MuJoCo |
| Firmware updates | Over the air (OTA) |
| Materials | Aerospace-grade aluminium alloy and food-grade plastic |
| Operating environment | −10 to 40 °C, up to 90 % relative humidity |

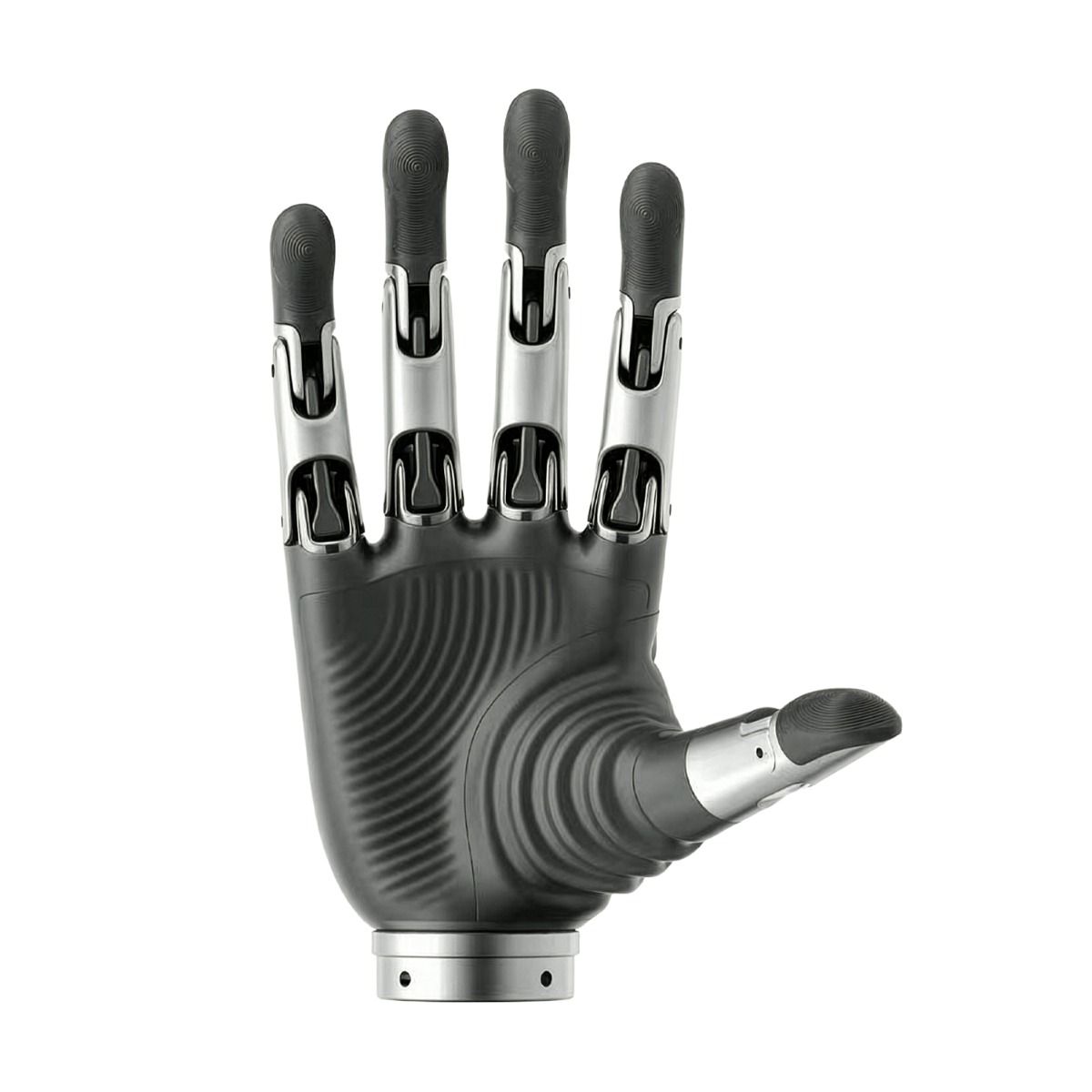

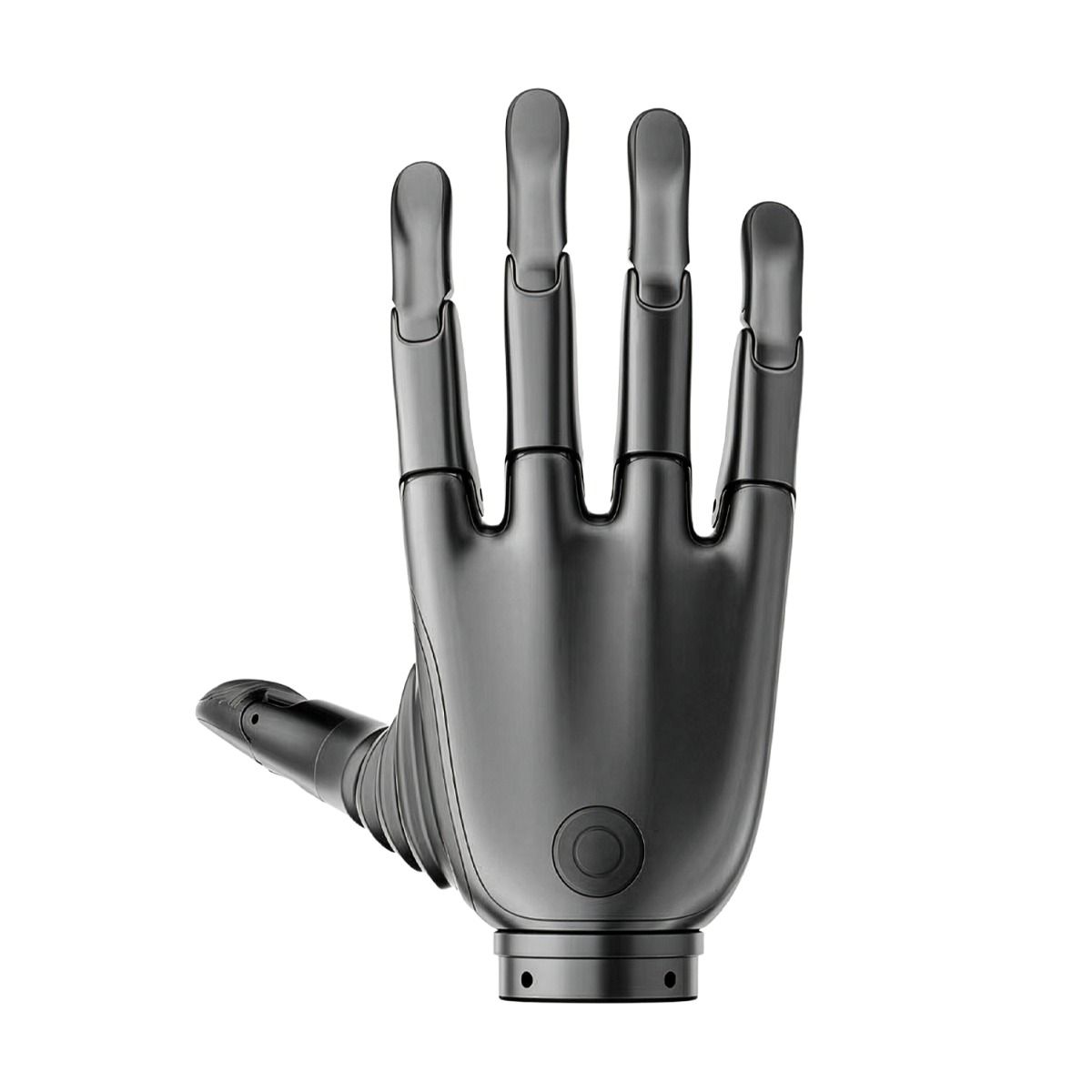

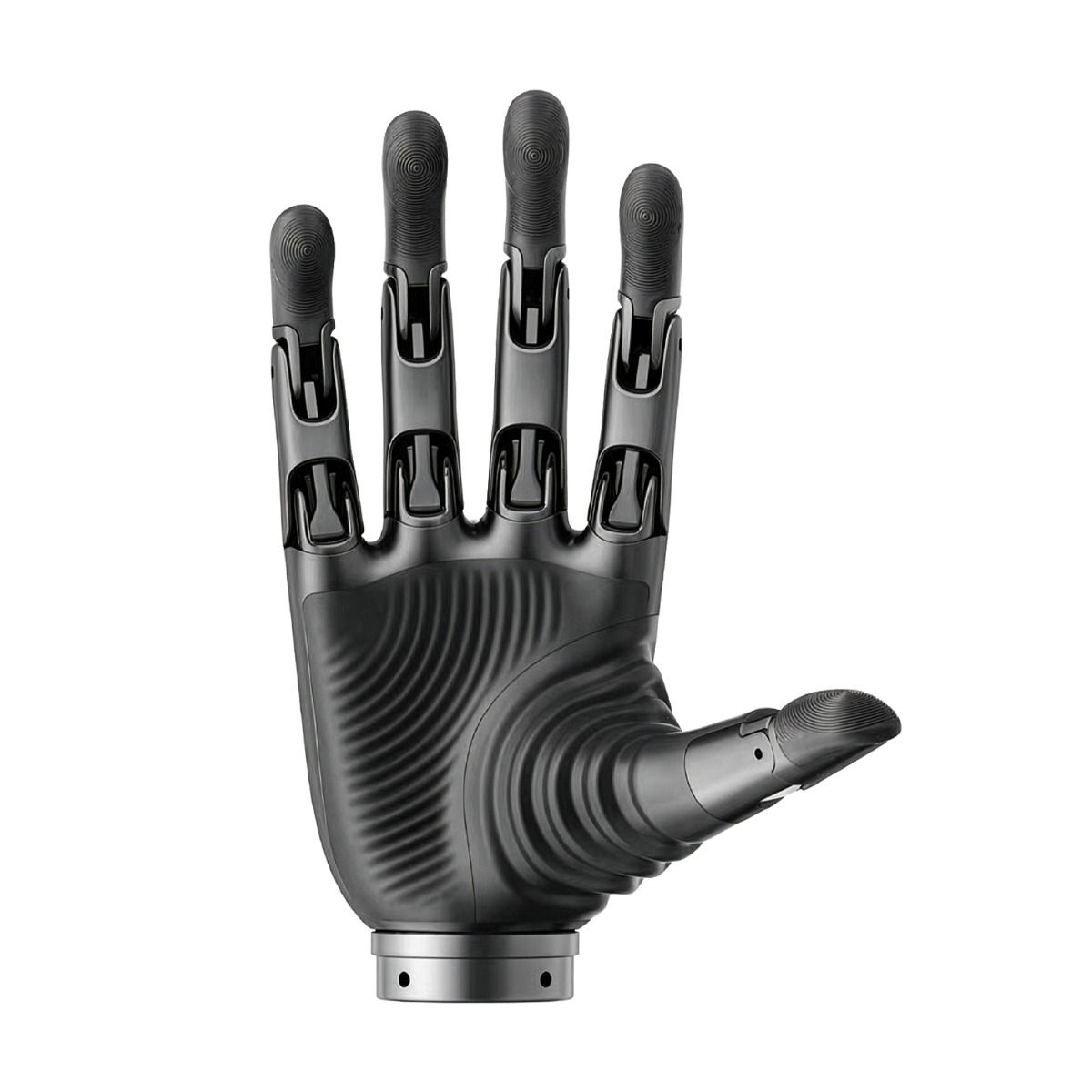

| Standard colours | Space Gray, Silver |
| What's in the box | Hand, RS-485/CAN FD communication cable, EtherCAT communication cable and power cable |
| Robot mounting | Confirm at quote |
Industries
Frequently Asked Questions
The BrainCo Revo 2 Pro Bionic Hand Left (XEL) is priced at €3.850 in your market.
EtherCAT (CoE and PDO) at up to 1 kHz alongside RS-485 and CAN FD, and a 12–64 V supply instead of 12–28 V. The mechanism, 383 g weight, 50 N grip and 20 kg payload are the same.
No. Fingertip tactile sensing and tactile adaptive control come with the Revo 2 Touch, which is otherwise the same as the Pro. The Pro controls its grip through position, velocity and motor-current feedback.
Eleven: six driven by motors (two in the thumb, one per finger) and five passive. The thumb flexes 0–59° and swings 0–90°, and each finger flexes 0–81°.
EtherCAT at up to 1 kHz, or RS-485 (Modbus-RTU) and CAN FD at up to 500 Hz, on 12–64 V through an XT30 power connector. The wrist takes four M3 screws; mounting to your arm or humanoid is confirmed with the quotation.
Yes, the XEL is the left hand and the XER the right. Their default device IDs, 126 and 127, keep a pair apart on the same bus.
