- EtherCAT for real-time arms CoE and PDO over EtherCAT give a control rate of up to 1 kHz, so the fingers can run in the same cycle as an EtherCAT arm.
- Three interfaces, one hand EtherCAT, CAN FD and RS-485 (Modbus-RTU) each have a connector under the wrist; the two serial buses run at up to 500 Hz.
- Runs from 12 to 64 V At 24 V it draws 115 mA standing still, 390 mA on average flexing with no load and 4.65 A at most.
- Six motors, 11 degrees of freedom Driven thumb flexion (0–59°) and abduction (0–90°), driven flexion in each finger (0–81°) and five passive joints repeat to 0.1°.
- At least 50 N grip The 383 g hand grips with at least 50 N, pinches with 15 N and holds at least 20 kg.
- Simulation-ready URDF models for ROS 1 and ROS 2 and a MuJoCo model sit alongside BrainCo's Python and C/C++ SDKs.
Description

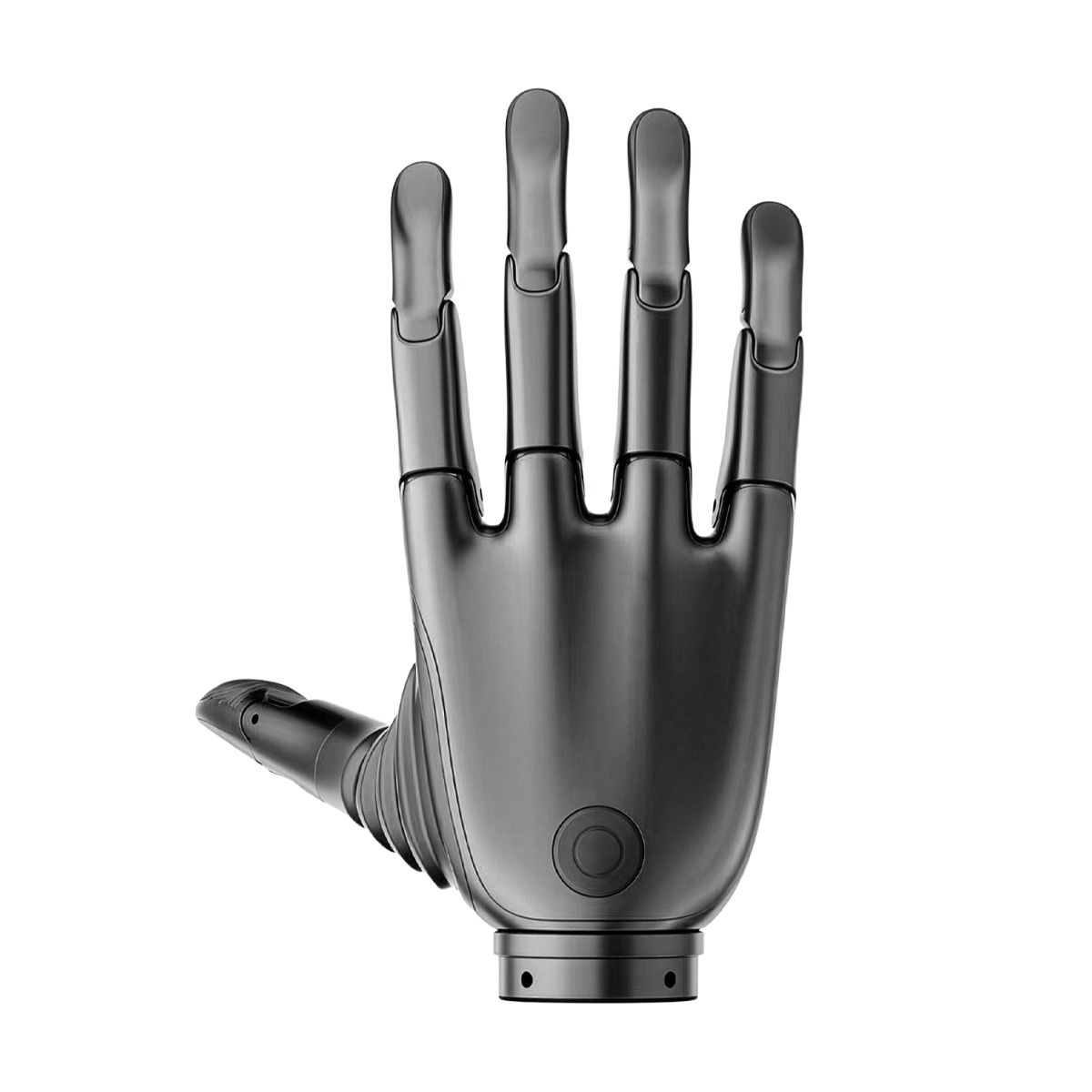

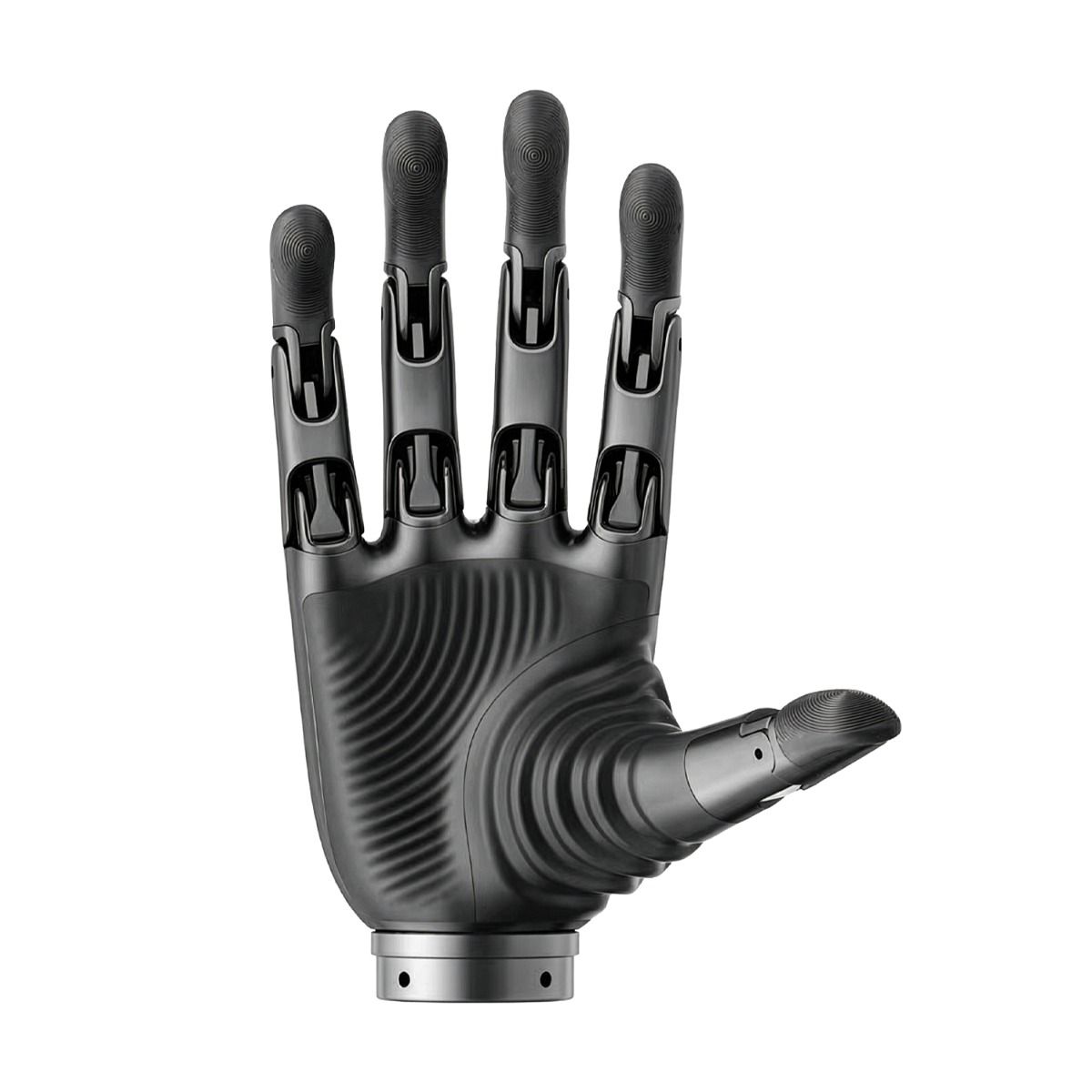

The BrainCo Revo 2 Pro Right (XER) is the right-hand bionic dexterous robotic hand of BrainCo's Revo 2 Pro version, the step up from the Basic for robots built around EtherCAT. Its five fingers carry 11 degrees of freedom, six of them driven by coreless motors, in a hand of 383 g that is 160 mm long and 78.5 mm across the palm.
Many humanoids and collaborative arms run their joints on EtherCAT, and the XER joins that network directly: CoE and PDO at up to 1 kHz, with RS-485 (Modbus-RTU) and CAN FD at up to 500 Hz on separate connectors for simpler setups. It runs from 12 to 64 V through an XT30 connector and draws 115 mA at rest at 24 V. The control stack is the same across the Revo 2: position, velocity and current control with cascaded and compliance control, five command modes and a turbo mode that keeps re-gripping a soft or shifting object after a stall.
Mechanically the Pro equals the other Revo 2 versions: at least 50 N grip, 15 N pinch, a payload of at least 20 kg, 100 mm opening between thumb and index finger, 0.1° repeat precision and 0.65 s or less per flex or extension. The Revo 2 Basic right hand (XRR) drops EtherCAT and runs on 12–28 V; the Revo 2 Touch right hand (XTR) keeps the Pro's interfaces and adds a capacitive tactile sensor in every fingertip.
Out of the box the XER uses device ID 127 and the Revo 2 Pro left hand (XEL) 126, so a two-handed robot addresses both on one bus. The package holds the hand with RS-485/CAN FD, EtherCAT and power cables; BrainCo's Python and C/C++ SDKs run on Linux, Windows and ROS, and the firmware updates over the air. For other makes and models, see our dexterous robotic hands.
Key Capabilities
- EtherCAT for real-time arms: CoE and PDO over EtherCAT give a control rate of up to 1 kHz, so the fingers can run in the same cycle as an EtherCAT arm.
- Three interfaces, one hand: EtherCAT, CAN FD and RS-485 (Modbus-RTU) each have a connector under the wrist; the two serial buses run at up to 500 Hz.
- Runs from 12 to 64 V: At 24 V it draws 115 mA standing still, 390 mA on average flexing with no load and 4.65 A at most.
- Six motors, 11 degrees of freedom: Driven thumb flexion (0–59°) and abduction (0–90°), driven flexion in each finger (0–81°) and five passive joints repeat to 0.1°.
- At least 50 N grip: The 383 g hand grips with at least 50 N, pinches with 15 N and holds at least 20 kg.
- Simulation-ready: URDF models for ROS 1 and ROS 2 and a MuJoCo model sit alongside BrainCo's Python and C/C++ SDKs.
Buying through Robotix Market
This unit is sourced new through established distribution channels and ships worldwide with the manufacturer warranty. Technical support is coordinated with the manufacturer's own service network. Deployment scope, configuration, and commissioning responsibilities are agreed as part of the quotation — on-site installation is not included in the product price.
Features
Specs
| Brand | BrainCo |
|---|---|
| Model | Revo 2 Pro |
| Version code | XER (right hand); the left hand is XEL |
| Hand side | Right |
| Fingers | 5 |
| Degrees of freedom | 11 (6 active, 5 passive) |
| Motors | 6 coreless motors, magnetic encoders, one integrated controller |
| Active joints | Thumb flexion, thumb abduction/adduction, and flexion of the index, middle, ring and little fingers |
| Range of motion | Thumb flexion 0–59°, thumb abduction/adduction 0–90°, each finger 0–81° |
| Weight | 383 g (without wrist) |

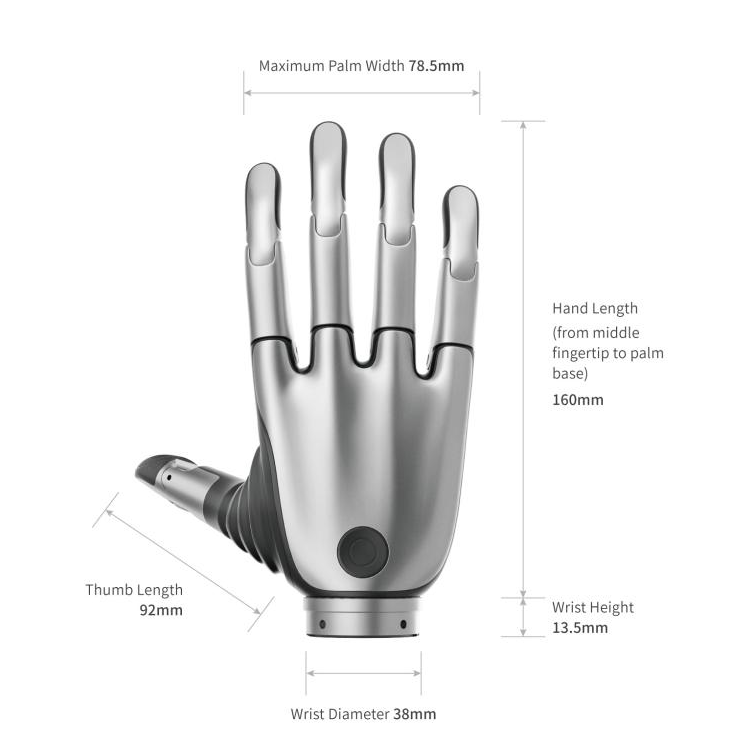

| Hand length (palm base to middle fingertip) | 160 mm |
| Maximum palm width | 78.5 mm |
| Thumb length | 92 mm |
| Wrist | 38 mm diameter, 13.5 mm high |
| Maximum opening (thumb to index finger) | 100 mm |
| Five-finger grip force | ≥ 50 N |
| Pinch force | ≥ 15 N |
| Maximum payload | ≥ 20 kg |
| Repeat control precision | 0.1° |
| Flexion/extension time | ≤ 0.65 s |
| Operating noise | ≤ 50 dB at 50 cm |
| Tactile sensing | None (fitted on the Revo 2 Touch) |
| Communication interfaces | RS-485 (Modbus-RTU), CAN FD, EtherCAT (CoE and PDO) |
| Communication frequency | Up to 500 Hz over RS-485 or CAN FD, up to 1 kHz over EtherCAT |
| Supply voltage | 12–64 V |
| Current at 24 V | 115 mA static, 390 mA average with no load, 4.65 A maximum |
| Power connector | XT30 |
| Control modes | Position, velocity and current control; cascaded and compliance control |
| Wrist mounting | 4 × M3 screws into 3.5 mm threaded holes (screws no deeper than 3 mm) |
| Default device ID | 127 (the left hand uses 126), adjustable 1–254 |
| Protection | Current, stall, over-temperature and collision protection |
| SDK | Python and C/C++ for Linux, Windows and ROS |
| Simulation models | URDF (ROS 1 and ROS 2) and MuJoCo |
| Firmware updates | Over the air (OTA) |
| Materials | Aerospace-grade aluminium alloy and food-grade plastic |
| Operating environment | −10 to 40 °C, up to 90 % relative humidity |

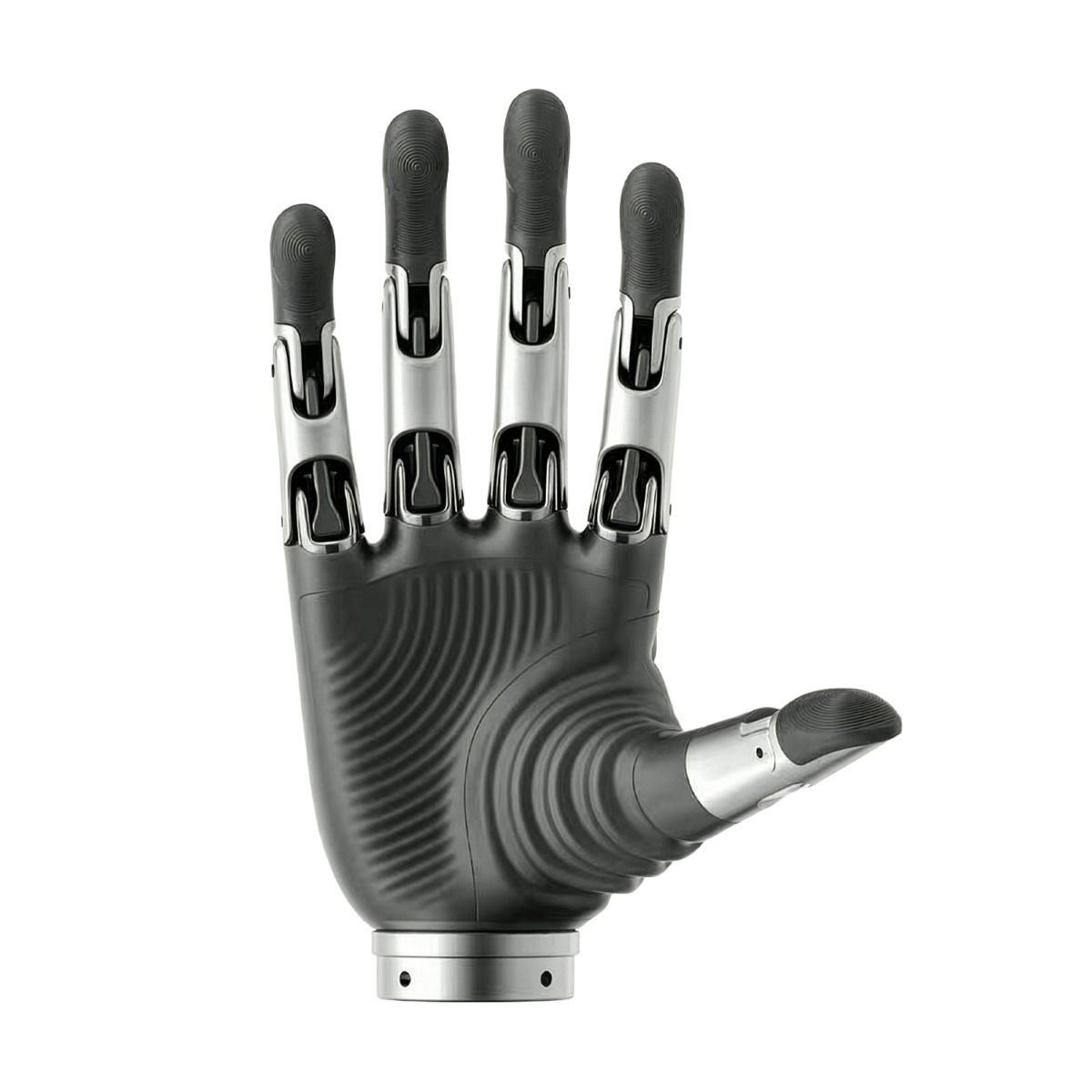

| Standard colours | Space Gray, Silver |
| What's in the box | Hand, RS-485/CAN FD communication cable, EtherCAT communication cable and power cable |
| Robot mounting | Confirm at quote |
Industries
Frequently Asked Questions
The BrainCo Revo 2 Pro Bionic Hand Right (XER) is priced at €3.850 in your market.
For EtherCAT: the Pro adds CoE and PDO control at up to 1 kHz to the Basic's RS-485 and CAN FD, and widens the supply from 12–28 V to 12–64 V. Size, weight and strength do not change.
The Touch is the Pro with tactile sensors: it adds a capacitive sensor to each fingertip that reads pressure, friction, force direction and proximity, and a tactile adaptive control mode. The interfaces and supply range are the same.
383 g. It carries at least 20 kg, grips with at least 50 N across five fingers and pinches with at least 15 N.
BrainCo's Python and C/C++ SDKs for Linux, Windows and ROS, URDF models for ROS 1 and ROS 2, and a MuJoCo model. The firmware updates over the air.
Yes, it is the right hand. The Revo 2 Pro left hand (XEL) completes the pair, and their default device IDs (127 right, 126 left) keep them separate on a shared bus.
