- 100 TOPS computing The GO2W-U5 carries a 100 TOPS high-performance computing module for perception, navigation and your own algorithms.
- Three-axis stabilized dual-light PTZ A high-precision, three-axis stabilized dual-light PTZ camera.
- 4D LiDAR and depth camera Unitree's 4D LiDAR and an Intel RealSense D435i depth camera on every Go2.
- Wheels and legs 16 degrees of freedom with driven wheels: 0–2.5 m/s, about 3 kg payload, 35° slopes.
- Open for development Secondary development, OTA updates and Unitree's developer documentation and technical support.
- Quick-release battery 15,000 mAh smart battery for about 2 hours, with a 33.6 V / 9 A fast charger and a manual remote controller.
Description

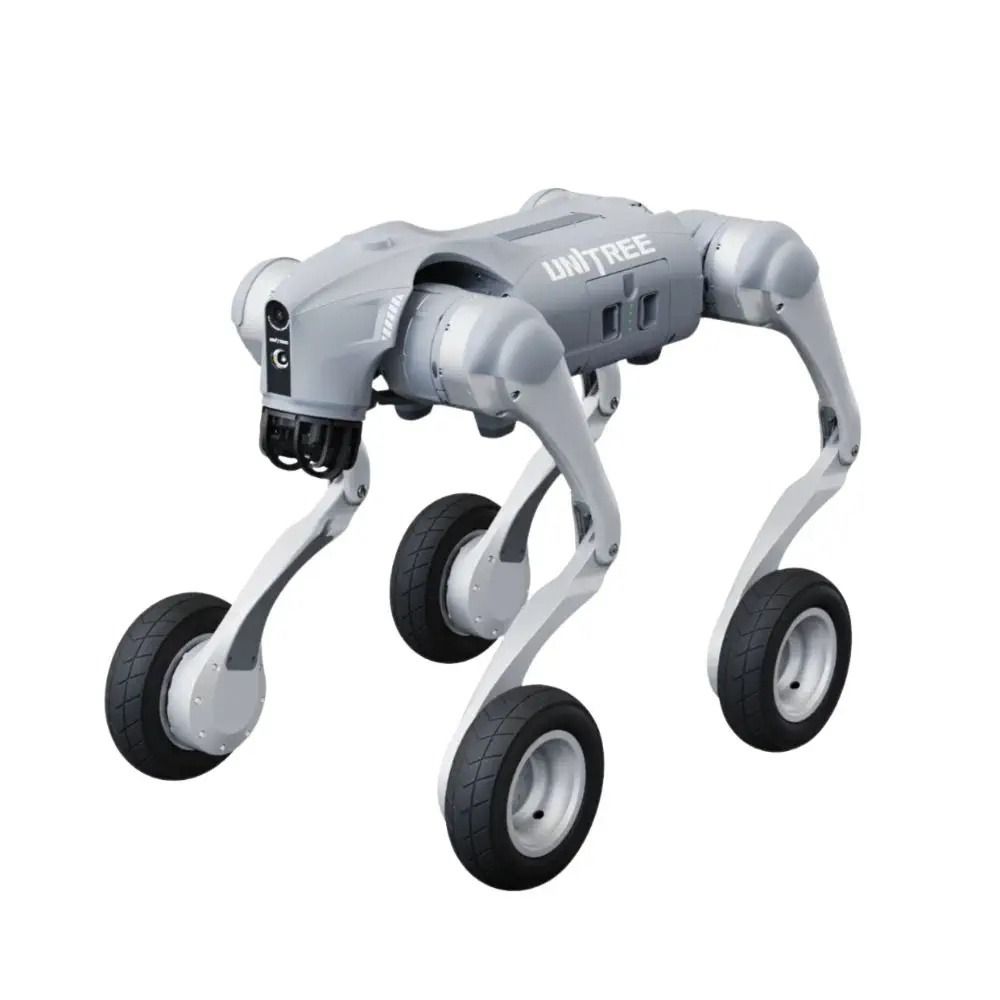

The Unitree Go2-W Inspection Package (U5) — Unitree model GO2W-U5 — is Unitree's wheeled Go2, with a driven wheel at the end of each leg, configured with a 100 TOPS high-performance computing module plus a high-precision, three-axis stabilized dual-light PTZ camera. Like every Go2 it carries Unitree's 4D LiDAR and an Intel RealSense D435i depth camera, an 8-core CPU, Wi-Fi 6 and Bluetooth 5.2, and it is open for secondary development.
It measures 70 × 43 × 50 cm standing and weighs about 18 kg with battery, with 16 degrees of freedom (12 leg joints and 4 driven wheels). It moves at 0–2.5 m/s, carries about 3 kg, has a maximum climbing height of about 70 cm and slopes up to 35°. A 15,000 mAh quick-release smart battery gives about 2 hours per charge; a fast charger (33.6 V, 9 A) and a manual remote controller come with it, and the software updates over the air.
The Go2-W is a development platform: the legged Go2’s app features — dance moves, the ISS 2.0 side-follow system and automatic obstacle avoidance — are not part of it.
In the Go2-W range, the U1 has the 40 TOPS module, the U2 the 100 TOPS module, the U3 adds a Livox Mid-360 LiDAR, the U4 a Hesai XT16 LiDAR and the U5 a three-axis stabilized dual-light PTZ camera; the U6 carries Unitree's D1 servo arm. The Go2-W Inspection Package (U5) is covered by a 12-month manufacturer's warranty, with technical support and development documentation from Unitree.
Official Product Videos
Features
Specs
| Brand | Unitree Robotics |
|---|---|
| Model | Go2-W Inspection Package (U5) — GO2W-U5 |
| Computing | 100 TOPS high-performance computing module + 8-core CPU |
| Additional sensor | Three-axis stabilized dual-light PTZ |
| Built-in sensors | Unitree 4D LiDAR + Intel RealSense D435i depth camera |
| Size (standing) | 70 × 43 × 50 cm |
| Weight | about 18 kg with battery |
| Degrees of freedom | 16 (12 leg joints + 4 driven wheels) |
| Speed | 0–2.5 m/s |
| Payload | about 3 kg |
| Max. climbing height | about 70 cm |
| Max. slope | 35° |
| Battery | 15,000 mAh quick-release smart battery, about 2 h |
| Charger | Fast charger, 33.6 V 9 A |
| Connectivity | Wi-Fi 6, Bluetooth 5.2 |
| Remote controller | Manual remote controller included |
| Secondary development | Yes |
| Warranty | 12 months (manufacturer) |
| Packaging | 86 × 64 × 61 cm, 68 kg |
Industries
Frequently Asked Questions
The Unitree Go2-W Inspection Package (U5) is priced at €29.600 in your market. For volume or project orders, contact us for a business quote.
The Go2-W Inspection Package (U5) is Unitree's wheeled Go2, with a driven wheel at the end of each leg with a 100 TOPS high-performance computing module plus a high-precision, three-axis stabilized dual-light PTZ camera, plus the built-in 4D LiDAR, RealSense D435i depth camera, 15,000 mAh smart battery, fast charger and manual remote controller.
No. The Mid-360 comes with the Go2-W U3. The GO2W-U5 has a three-axis stabilized dual-light PTZ camera instead.
In the Go2-W range, the U1 has the 40 TOPS module, the U2 the 100 TOPS module, the U3 adds a Livox Mid-360 LiDAR, the U4 a Hesai XT16 LiDAR and the U5 a three-axis stabilized dual-light PTZ camera; the U6 carries Unitree's D1 servo arm.
A 12-month manufacturer's warranty, with Unitree's technical support, development manuals and OTA software updates.
No. Per Unitree's specification the basic interaction and dance moves, the ISS 2.0 side-follow system and automatic obstacle detection and avoidance are features of the legged Go2 EDU, not of the Go2-W.
