- 15,000 kg ultra-high payload Carries up to 15,000 kg, enabling automated handling of complete commercial vehicle modules such as chassis and cabs.
- 24/7 non-contact power supply Non-contact power delivery supports round-the-clock continuous operation with no charging interruptions to the assembly line.
- ±5 mm positioning accuracy Electromagnetic and magnetic navigation achieve ±5 mm positioning accuracy and ±10 mm navigation accuracy for precise module placement during assembly.
- Servo and mechanical braking A servo motor paired with a mechanical brake provides controlled, reliable stopping even under ultra-heavy loads.
- Simple, robust drive layout One drive wheel supported by two caster wheels keeps the drive system straightforward and dependable in continuous industrial use.
- Safer, more efficient assembly Automating the transfer of large modules significantly reduces manual workload while improving safety and overall assembly efficiency.
Description

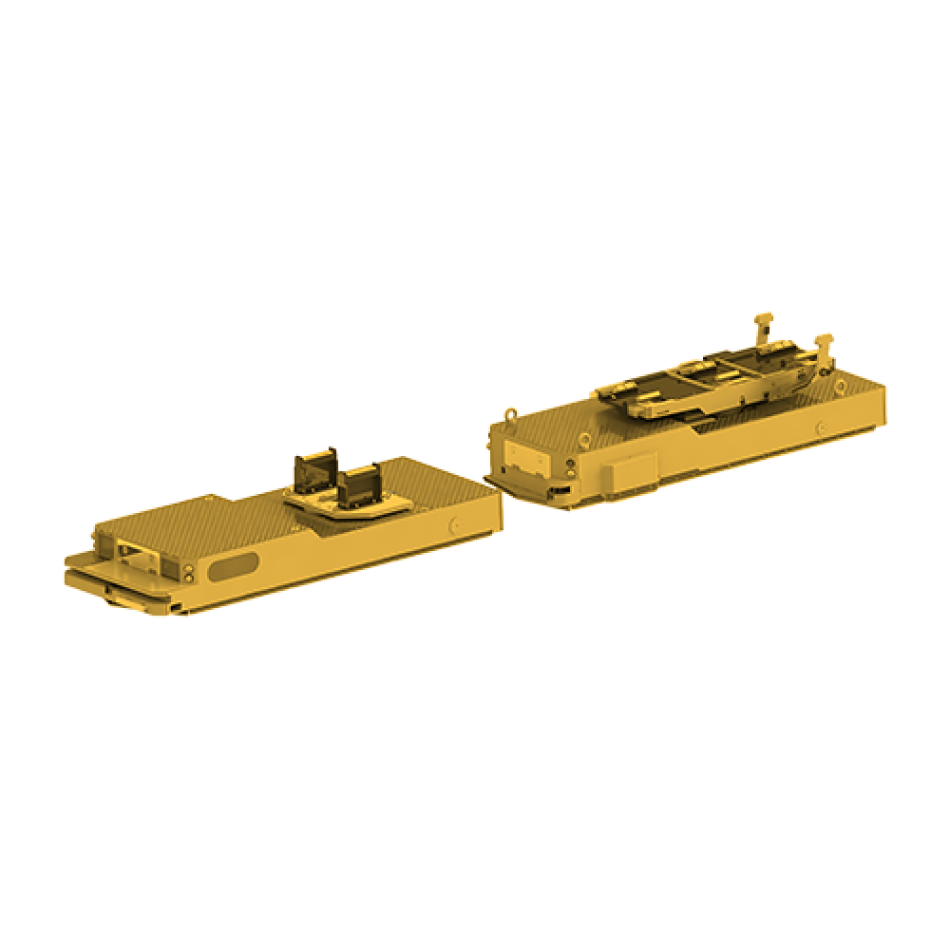

The SIASUN Commercial Vehicle Assembly Mobile Robot is a heavy-payload mobile platform engineered for large-scale final assembly of commercial vehicles, carrying loads of up to 15,000 kg. It is built to move and position the largest vehicle modules — such as complete chassis and cabs — through the assembly process. A non-contact power supply allows the robot to run 24/7 without charging downtime, while electromagnetic and magnetic navigation deliver positioning accuracy of ±5 mm and navigation accuracy of ±10 mm. Motion is handled by a single drive wheel with two caster wheels, and a servo motor combined with a mechanical brake provides controlled, dependable stopping under ultra-heavy loads.
On commercial vehicle final assembly lines, the robot replaces manual transfer of massive assemblies, significantly reducing manual workload while improving both safety and assembly efficiency. It gives truck and commercial vehicle manufacturers a flexible, intelligent alternative to fixed conveyance — the kind of repeatable transport, accurate positioning, and safe autonomous operation that modern smart factories and process-driven production logistics demand. For plants automating chassis marriage and cab handling at scale, it provides a proven foundation for continuous, high-throughput assembly.
Features
Specs
| Brand | SIASUN |
|---|---|
| Model | Commercial Vehicle Assembly Mobile Robot |
| Payload Capacity | 15,000 kg |
| Drive System | 1 drive wheel + 2 caster wheels |
| Navigation Method | Electromagnetic + magnetic navigation |
| Positioning Accuracy | ±5 mm |
| Navigation Accuracy | ±10 mm |
| Braking System | Servo motor + mechanical brake |
| Power Supply | Non-contact, supports 24/7 continuous operation |
Industries
Frequently Asked Questions
The SIASUN Commercial Vehicle Assembly Mobile Robot is priced on request. Contact us for current pricing and a tailored quote for your market.
It is a heavy-payload mobile robot designed for large-scale final assembly of commercial vehicles, automating the transport and precise positioning of large modules such as chassis and cabs with a payload capacity of up to 15,000 kg.
The robot uses electromagnetic and magnetic navigation, achieving ±5 mm positioning accuracy and ±10 mm navigation accuracy. It runs on one drive wheel with two caster wheels and brakes via a servo motor combined with a mechanical brake.
Yes. A non-contact power supply supports 24/7 continuous operation, so the robot can serve high-throughput assembly lines without charging downtime.
It significantly reduces manual workload on the final assembly line while improving safety and assembly efficiency, providing a flexible and intelligent assembly solution for the commercial vehicle industry.
This robot is sold on a quotation basis — availability, final configuration, and integration requirements are confirmed per project. Submit an inquiry through Robotix Market for pricing and shipping details; the product is covered by the manufacturer's warranty as provided by SIASUN, and we ship worldwide.
