The FJD MS100 is a guidance kit, not a mower. It is fitted to a golf mower you already own — it is designed for mainstream 3- and 5-link golf mowers — and adds centimeter-level GNSS positioning and an electric steering wheel, so the mower holds a planned line while the operator stays in the seat.

The division of work is simple. The kit steers along the guidance line; the operator still drives the mower, keeps control of the pedal and travel speed, runs the cutting units and remains responsible for the machine throughout. It is driving assistance for a crewed mower, not a conversion to unattended or self-driving operation.

Guidance lines are planned once, saved as profiles and reused on later mows. The kit follows straight lines, curves and pivots, which covers striped fairways as well as runs that follow the shape of a hole. Centimeter-level positioning reduces the overlap between passes, and the steering adapts to uneven ground and contours so the line holds across undulating fairways. Golf course fairways and sports fields are the settings it is made for.

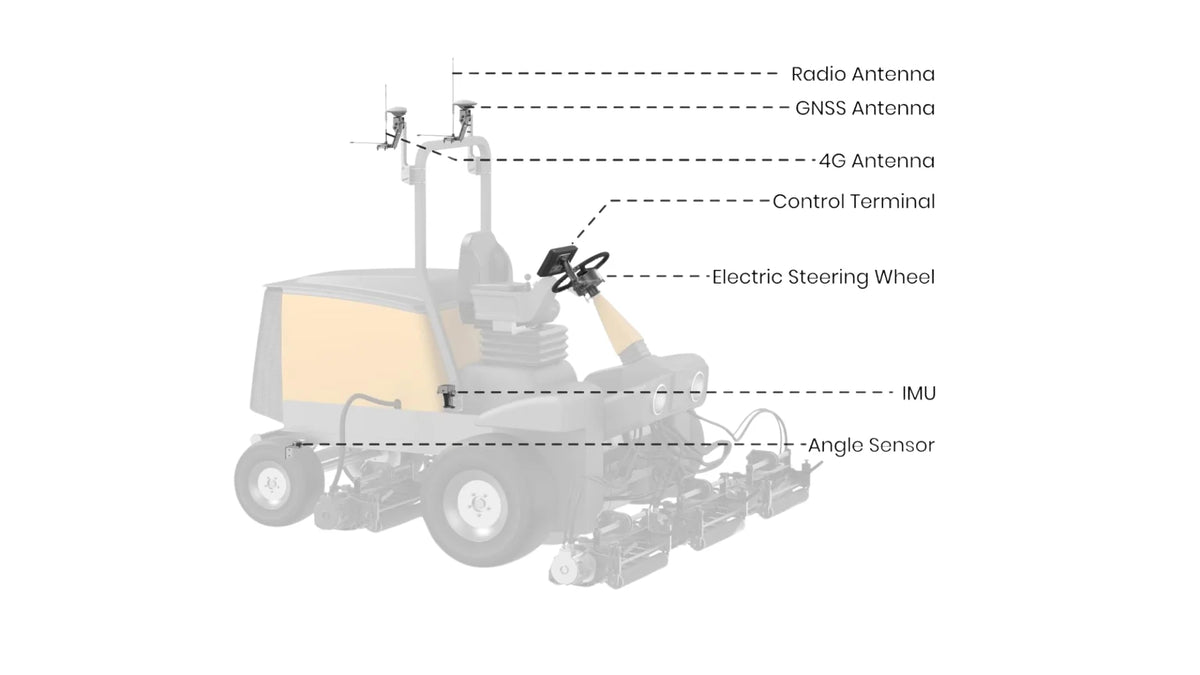

The system is built from separate sealed components. A 10.1-inch Android control terminal (1280 × 800, IP65, 4G/3G/2G) runs the guidance and has interfaces for radar, 4G, two GNSS antennas and a base station. The electric steering wheel (IP66) runs on 12 V or 24 V DC, the GNSS antenna tracks GPS L1/L2, GLONASS L1/L2 and BDS B1/B2/B3, and an IMU and an IP67 angle sensor make up the rest of the system. Which mower models it fits, the mounting parts needed and whether your site needs a base station are confirmed with the quotation.

Key Capabilities

• Fits Existing Golf Mowers: It is designed for mainstream 3- and 5-link golf mowers, adding guidance to a machine already in the fleet.
• Kit Steers, Operator Drives: The electric steering wheel follows the guidance line while the operator controls the pedal, travel speed and cutting units.
• Straight, Curved and Pivot Modes: The kit can follow straight lines, curves or pivots, chosen to suit the layout of the fairway or field.
• Centimeter-Level Positioning: High-precision GNSS positioning keeps passes tight and reduces overlap.
• Terrain Adaptation: The steering adapts to uneven ground and contours so the cut stays clean across undulating terrain.
• Reusable Guidance Line Profiles: A pattern planned once is saved and can be reused on every later mow.
• Multi-Constellation GNSS: The antenna tracks GPS L1/L2, GLONASS L1/L2 and BDS B1/B2/B3 signals.

This model is offered on a quotation basis. Configuration, accessories, integration scope and delivery schedule all change the final figure, so pricing is confirmed per project rather than listed.

Buying through Robotix Market

This unit is sourced new through established distribution channels and ships worldwide with the full manufacturer warranty. Technical support is coordinated with the manufacturer's own service network. Deployment scope, configuration, and commissioning responsibilities are agreed as part of the quotation — on-site installation is not included in the product price.
